Passive wiretap – how to make your own

My HR-manager proposed a device that could be installed on a network to capture traffic and send data to an attacker to be analysed offsite. To make this device he borrowed me his LAN tap from GreatScottGadgets (https://greatscottgadgets.com/throwingstar/)

I figured I wanted to try to make my own, so here’s a quick guide on how to make your own ethernet wiretap!

First I googled wiretap diagram and found the picture above. That diagram shows exactly what you want to make a basic wiretap, so now you just need the parts!

I ordered a set of ethernet connectors from dx.com to make this, but you could also scavenge them from an old router. The ones I bought from DealExtreme had crimps for the wires, making it a lot easier to do the wiring.

I started by marking the connectors: Host A, Host B, Tap A, Tap B.

I scavenged wires from an ethernet cable.

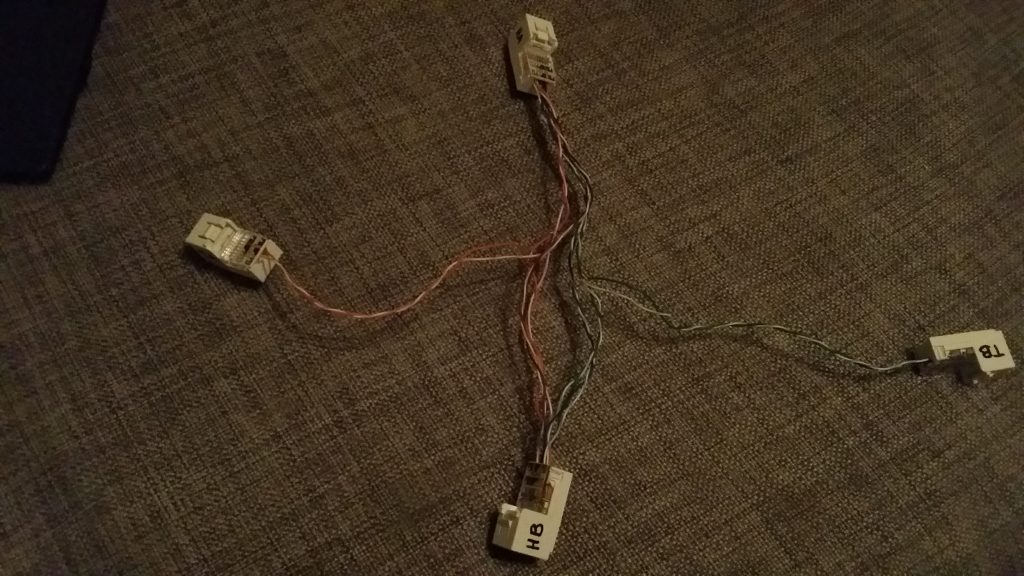

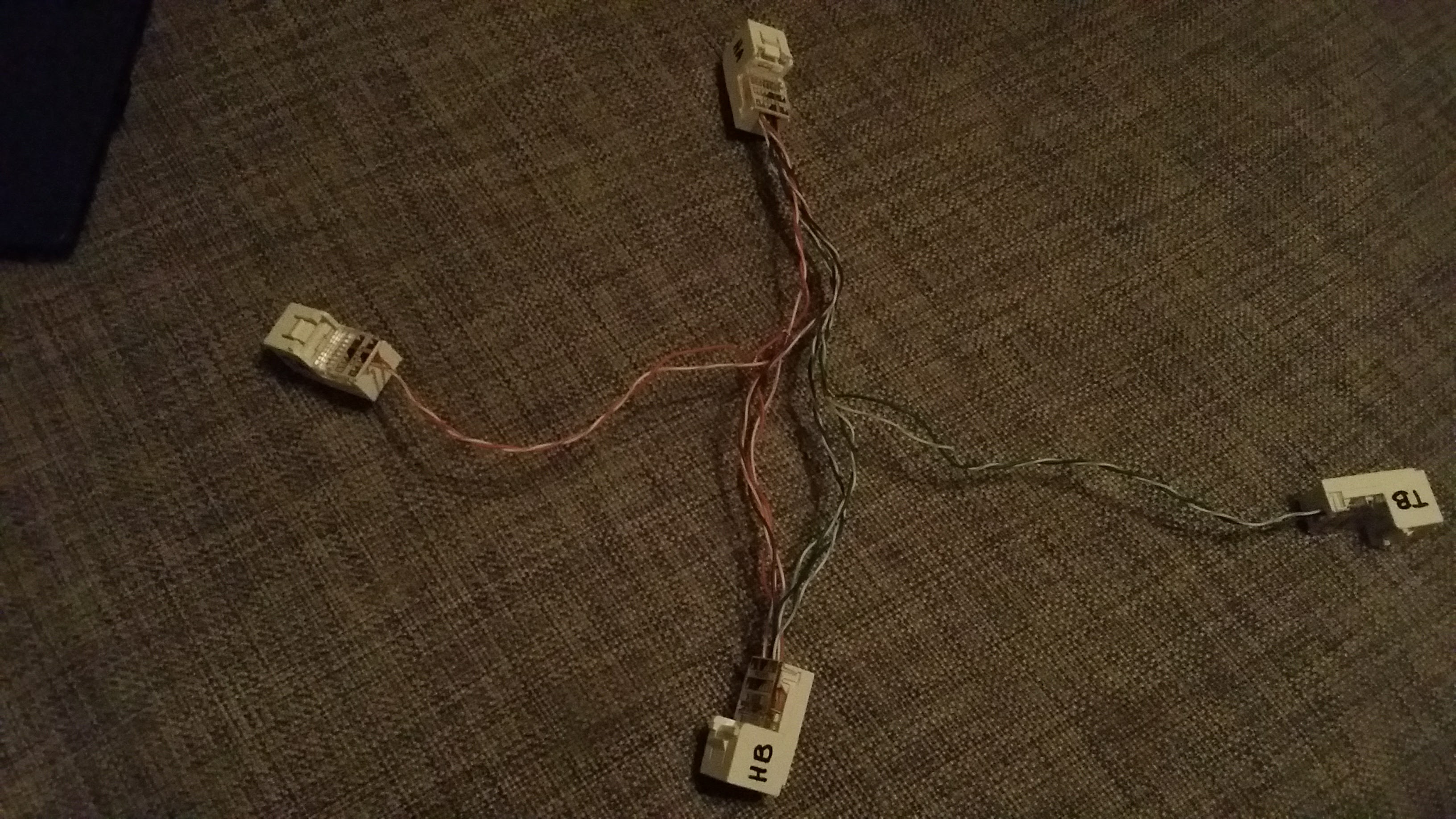

The colors even match! Now it’s just doing the wiring and you’ll end up with something like this:

The wires should have been a lot shorter, but whatever. The next step is getting a case that fits a raspberry pi and the wires.

Quick reminder: the wiretap is limited to a 100Mbit/s regardless of the speed on the rest of the network. Keep that in mind in case the target network uses intrusion detection systems etc.

WiFi deauthenticator – how to make your own

I surf around on reddit from time to time, and I found an interesting article on a Wifi deauthenticator. After reading it I figured this was something I wanted to have in my arsenal, so here’s how I made it.

The cornerstone of this device is the ESP8266 WiFi development board. I ordered mine here: https://www.banggood.com/Geekcreit-Doit-NodeMcu-Lua-ESP8266-ESP-12E-WIFI-Development-Board-p-985891.html?rmmds=search&cur_warehouse=CN

Next thing was to get a firmware flasher, like this one: https://github.com/nodemcu/nodemcu-flasher

It has a quick guide on the readme of the repo, but just go to win32 or win64 release folder and download the .exe unless you want to do any changes. (alternative for linux, mac and windows: https://github.com/espressif/esptool)

Then you want the deauthenticator firmware from here: https://github.com/spacehuhn/esp8266_deauther/releases

I would suggest getting the esp8266_deauther_1mb.bin for the NodeMCU, works like a charm.

Ok, let’s put the pieces together! Connect the board to your computer by usb, fire up your firmwareflasher and select the firmware you want to flash.

You need to select the right COM port, then go to Config-tab to select file to flash, then back to Operation to start flashing. When you’re done you simply unplug and plug the usb again, and the board will boot with the deauthenticator firmware. Cool!

Next step is connecting to the newly discovered WiFi ssid: “pwned”, with the password “deauther”. Once connected, go to 192.168.4.1 to open the portal.

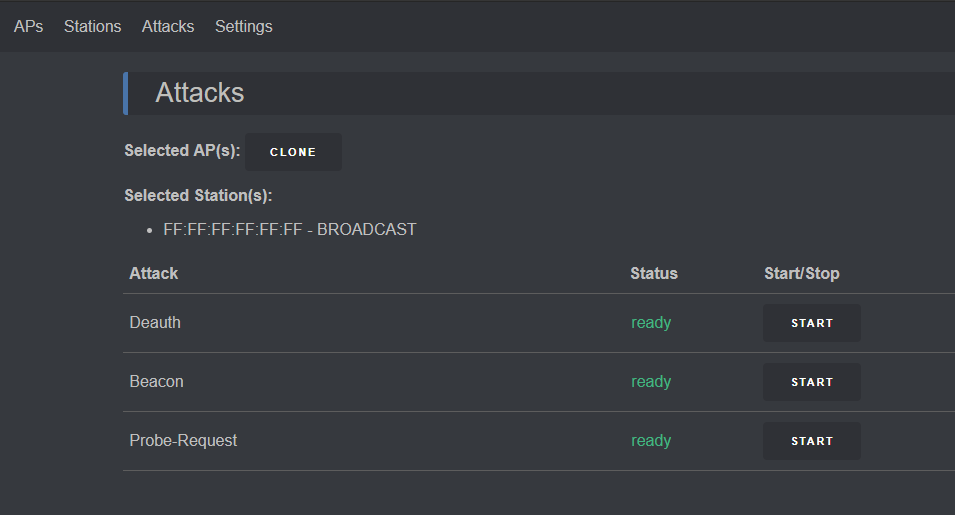

It will discover the available AP’s on its own, you simply have to select which ones to deauthenticate or otherwise tamper with, go to Attacks and start the attack of your choice. I will however advice you to go to settings and select the same channel as your target AP when using deauth to avoid getting kicked out of the deauthenticator.

Another thing to keep in mind is that the deauthenticator firmware is programmed to log every attack you execute. You can see this in the Attack.cpp on line 310. Just clone the repo and tamper with the log-function if you want to, but for security analysis/testing/demonstrations there’s no reason to remove the logging.

If you have access to a 3D-printer there’s a nice case for the NodeMCU on thingiverse: https://www.thingiverse.com/thing:1305796

This device is small and has a low power requirement, so it’s easy to imagine how you could power one of these with a small powerbank, set it up and hide it while executing the rest of your evil masterplan! Moahahah!
